SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness

Name: SATA 13Pin Female Connector Wire Solder Type PCB Mount Electrical Signal Power Connector for HDD SSD Storage Server Transmission Custom Harness
Brand: ShuangYi
Price: 0.14 USD

Cheap SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness for sale

Brand Name : ShuangYi

Model Number : SATA-C13F-A9S5A2-00LH

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.14-0.22 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : Slimline SATA 13-pin female SMT connector

Function : Board-level electrical / electronic signal connection

Pin count : 13 pins

Mounting type : SMT, right-angle to PCB

Housing material : Thermoplastic, UL94 V-0, halogen-free

Contact material : Copper alloy terminals

Contact plating : Nickel under-plating, gold flash or customized thickness

Rated current : Up to 1.5 A per contact (reference, application dependent)

Rated voltage : Up to 30 V AC / DC (low-voltage signal use)

Insulation resistance : ≥ 1,000 MΩ at 500 V DC

Contact resistance : ≤ 30 mΩ (initial)

Dielectric strength : 300 V AC / minute

Mechanical durability : ≥ 500 mating cycles

Operating temperature : –40 °C to +105 °C

PCB thickness reference : Around 1.0 mm board edge design

RoHS/REACH : Halogen-free, RoHS-compliant materials

Customization options : Gold thickness, housing color, packaging, harness assembly

Contact Now

Product Description

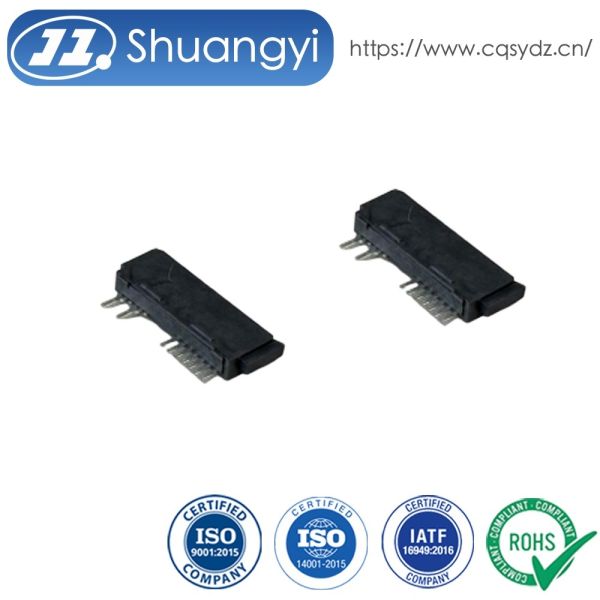

This PCB SATA female connector is designed for compact board-to-wire applications where reliable power and high-speed signal transmission are critical. Fine-pitch copper-alloy terminals with selective gold plating provide low contact resistance and stable impedance for HDD/SSD data lines, while robust ground and power pins support continuous current in demanding server, industrial and automation systems. The SMT right-angle housing saves vertical space and allows easy routing on dense PCB layouts. Reinforced solder-tabs and a rigid thermoplastic body improve vibration resistance and long-term mechanical stability. The connector can be supplied as part of a customized cable assembly, matching specific wire gauges, jackets and harness layouts.

SATA 13-Pin Female Connector, Wire Solder Type, PCB Mount Electrical Signal Power Connector for HDD SSD Storage, Server Transmission, Custom Harness

Connector type	SATA female board-to-wire connector
Interface	Combined power and signal contacts
Number of contacts	13 pins (custom pin counts available)
Mounting style	SMT right-angle, PCB board-edge
Contact pitch	Standard SATA contact pitch, fine-pitch terminals
Rated voltage	Up to 30 V AC/DC (application-dependent)
Rated current	Up to 1.5 A per contact (power pins higher on request)
Contact material	Copper alloy, high-conductivity
Plating	Nickel underlayer with selective gold on contact area
Housing material	Thermoplastic, UL94 V-0, halogen-free
Operating temperature	–40 °C to +105 °C
Wire connection style	Mates with crimped / soldered cable harnesses
Compliance	RoHS, HF, REACH compatible materials

Applications

Storage backplanes for servers, workstations and RAID systems

Embedded PCs, DVRs, industrial computers and automation controllers

Power and signal interfaces between mainboard and removable drives

Precautions

Confirm PCB pad layout, pin assignment and keying direction before production.

Avoid exceeding recommended current and temperature limits on power pins.

Ensure proper strain-relief on mating cable harness to prevent solder-joint stress.
