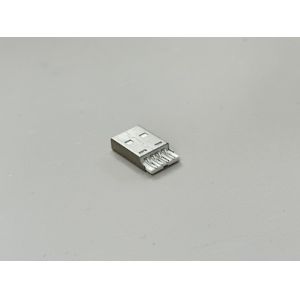

High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type

Name: HighPerformance USB 20 AM Connector Integrated White Housing GoldFlash Contacts BrightNickel Shell WireSolder Type
Brand: ShuangYi
Price: 0.02 USD

Cheap High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type for sale

Brand Name : ShuangYi

Model Number : USB-04M-A4S2A2-041R

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.02-0.04 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Structure : One-piece, solder-type design

Housing Material : High-temperature engineering plastic, black

Plating : Gold-flash on contact area, nickel plating on shell

Surface Treatment : Smooth, no scratches, dents, or deformation

Current Rating : 1.5A @ 250V AC

Insulation Resistance : ≥1000 MΩ @ 500V DC

Durability : 1500 cycles

Salt Spray Test : ≥24 hours

Environmental Compliance : RoHS 2.0

Application Type : Wire-to-cable USB interface

Contact Now

Product Description

This USB 2.0 AM integrated connector is designed with a one-piece metal housing and high-precision solder-cup terminals, providing strong mechanical stability and excellent electrical performance. The white PBT V0 housing delivers flame-retardant protection, while the gold-plated contact area ensures reliable signal transmission with reduced contact resistance. The connector is built for frequent plugging, high-load environments, and long-term durability, making it suitable for professional cable assembly applications.

High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type

Product Type	USB 2.0 AM Integrated Wire Solder Connector
Structure	One-piece metal shell with solder cup terminals
Housing Material	PBT GF V0 White
Terminal Material	Brass C2680
Shell Material	SPCC
Plating	Gold-flash on contacts; nickel plating on shell
Current Rating	1.5A max
Voltage Rating	250V AC
Contact Resistance	≤30 mΩ
Insulation Resistance	≥1000 MΩ at 500VDC
Withstand Voltage	500VAC/min
Durability	1500 mating cycles
Salt Spray Resistance	≥24 hours
Wire Termination	Solder type
Environmental	HF compliant / RoHS compliant

Applications

USB data cables and power supply lines

Consumer electronics and smart devices

Industrial control equipment

Automotive infotainment systems

Computer peripherals and charging accessories

Customized wire harness manufacturing

Precautions

Ensure correct wire gauge and solder depth during termination to maintain electrical performance.

Avoid excessive mechanical stress on the solder cups or housing during assembly.

Store in a dry, dust-free environment to prevent oxidation before production.

Follow RoHS/HF requirements when integrating into finished products.
