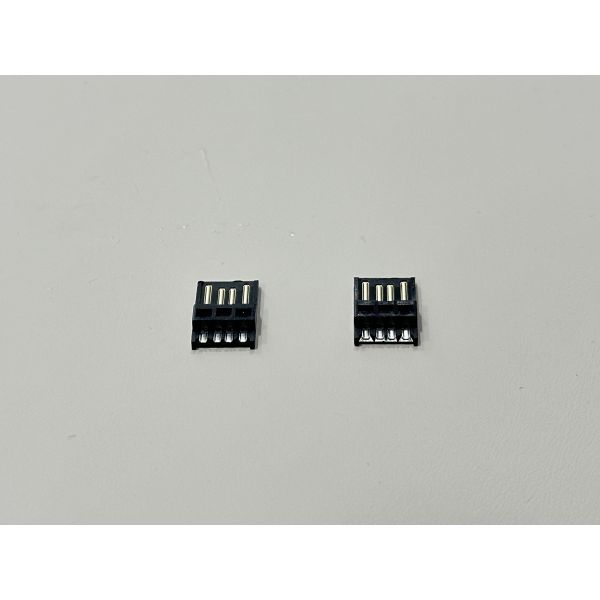

High-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable Connector

Name: HighPerformance USB 20 AM Wire Soldering Connector GoldFlash Black Housing Electrical Signal Cable Connector
Brand: ShuangYi
Price: 0.02 USD

Cheap High-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable Connector for sale

Brand Name : ShuangYi

Model Number : USB-04M-A3S1A2-000R

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.02-0.03 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Structure : Clamp-mount with protective housing

Material : Brass (C2680)

Plating : Copper ≥100 μ″ + Nickel ≥80 μ″

Surface Treatment : Smooth, no scratches, dents, or deformation

Orientation : Straight 180°

Application Category : Wire-to-PCB, power transmission, electronic equipment

Compliance : RoHS 2.0

Withstand Voltage : AC 500V/min

Contact Now

Product Description

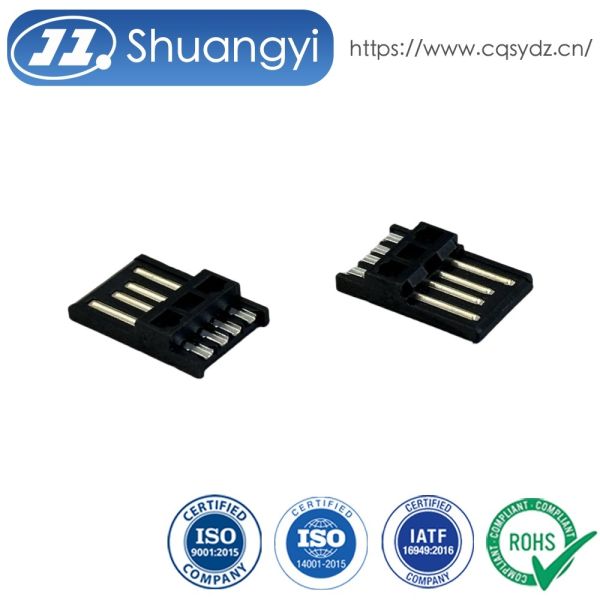

This USB 2.0 AM wire-soldering connector is engineered for reliable power and data transmission in electronic, automotive, and consumer-device applications. The connector features a black flame-retardant housing, gold-flash contacts for enhanced conductivity, and bright-tin plating on solder areas to ensure long-term stability. Manufactured with precise tolerances and ROHS-compliant materials, it supports consistent performance, secure mating, and strong mechanical durability across repeated insertions.

High-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable Connector

Product Type	USB 2.0 AM Wire-Soldering Connector
Structure	Wire-solder type, black housing
Plating	Gold-flash on contact area; bright tin ≥80u" on solder area; nickel ≥50u"
Housing Material	PBT, flame-retardant, V0 grade, ROHS2.0 compliant
Terminal Material	Brass C2680-H
Contact Resistance	≤30mΩ
Rated Current	1.5A at 250VAC
Dielectric Withstanding Voltage	500VAC / 1 minute
Insulation Resistance	≥1000MΩ at 500VDC
Durability	1500 cycles
Salt Spray Test	≥24 hours
Operating Type	Male connector
Assembly	Wire soldering
Compatibility	USB 2.0 devices, power & data transmission

Applications

Power and signal transmission cables

Consumer electronics, chargers, adapters

Automotive electronic wiring

Industrial control interfaces

Custom wire harness and PCB assemblies

Server and data-communication devices

Precautions

Ensure proper wire-soldering to avoid resistance increase.

Avoid excessive force during insertion/removal to maintain contact integrity.

Keep terminals clean and dry before assembly.

Verify compatibility with USB 2.0 standard devices.

Store in a non-corrosive environment to protect plating.
