Product Description

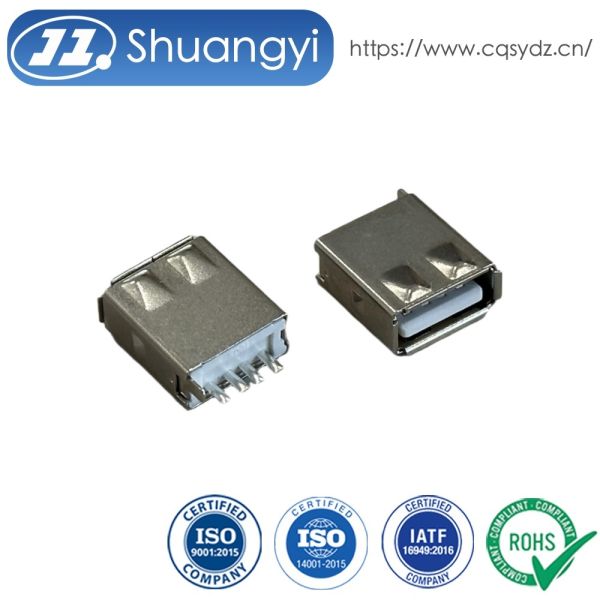

This USB A/F 180° wire-solder connector is designed for high-reliability electronic and power-signal applications. The gold-flash contact terminals ensure stable transmission, reduced resistance, and long-term corrosion resistance. The white PBT reinforced housing delivers excellent heat stability, flame-retardant performance, and mechanical strength. Its robust structure supports customization for different cable gauges, automotive devices, consumer electronics, server equipment, and PCB-level integration. The nickel-plated metal shell enhances shielding performance and durability, making it suitable for precise electrical connection and cable-end assembly.
| Type | USB A Female 180° Wire-Solder Connector |
| Structure | 2-piece housing + terminal assembly |
| Housing Material | PBT + Glass Fiber, white, UL94V-0 |
| Contact Material | Brass, nickel under-plating, gold-flash contact area |
| Shell Material | Iron, nickel plated |
| Plating Thickness | Gold-flash on contact area; tin plating on solder area |
| Current Rating | 1.5A max |
| Voltage Rating | 250V AC |
| Contact Resistance | ≤30 mΩ |
| Insulation Resistance | ≥500 MΩ |
| Dielectric Withstanding Voltage | 500V AC / 1 min |
| Durability | 1,500 cycles |
| Operating Temperature | –30°C to +80°C |
| Salt Spray | ≥24 hours |
| Wire Compatibility | Suitable for power / signal cable soldering |
| Compliance | RoHS 2.0 |
Applications
Power and signal cable assembly for consumer electronics
Automotive diagnostic interfaces and in-vehicle electronic modules
Server, storage, and industrial control equipment
Custom cable harnesses for charging devices and data-transmission systems
PCB-to-cable interface modules requiring stable USB connections
Precautions
Ensure proper soldering temperature to avoid damage to contacts.
Keep connectors dry before assembly to maintain insulation performance.
Avoid excessive pulling force on the cable after soldering.
Store in a cool, dust-free environment to prevent oxidation.
Confirm compatibility with USB 2.0 electrical requirements before integration.
|
|
