Product Description

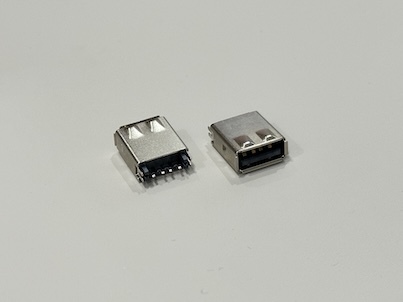

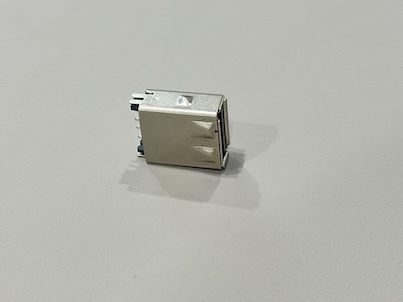

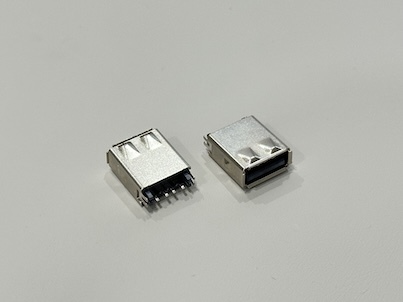

This USB 2.0 A/F clamp-type connector is engineered for reliable cable termination and stable device-side integration. The gold-flash plated terminals deliver enhanced conductivity, low contact resistance, and improved corrosion resistance, making the connector suitable for long-term and high-frequency mating. The protective housing design reinforces mechanical stability, while the stainless-steel and SPCC shells provide added shielding and structural strength. With UL94-V0 flame-retardant materials and multiple plating layers, this connector meets industry requirements for durability, safety, and consistent transmission performance.
| Connector Type | USB 2.0 A/F Clamp-Type Connector |
| Structure | Clamp-mount with protective housing |
| Terminals Material | Brass (C2680) |
| Housing Material | LCP, UL94-V0 |
| Inner Shell Material | Stainless Steel (SUS) |
| Outer Shell Material | SPCC Steel |
| Plating – Terminal Nickel | ≥ 50 μ" |
| Plating – Terminal Tin | ≥ 80 μ" (solder/crimp area) |
| Plating – Terminal Gold | Gold Flash (G/F) |
| Plating – Inner Shell Nickel | ≥ 30 μ" |
| Plating – Outer Shell Nickel | ≥ 50 μ" |
| Mating Force | ≤ 35 N |
| Unmating Force | ≥ 10 N |
| Durability | 1500 cycles @ 200 cycles/hour |
| Flammability Rating | UL94-V0 |
| Application | Wire-to-board / cable assembly / device port integration |
Applications
Consumer electronics ports and charging interfaces
Power banks, adapters, small appliances
Industrial control devices and communication modules
Automotive electronic modules
Cable assembly production and OEM/ODM harness manufacturing
PCB-mounted USB extension ports
Precautions
Ensure the mating dimensions match USB 2.0 A/F standards for proper fit.
Avoid excessive force or misalignment during installation to prevent shell deformation.
Store in a dry environment to protect plated surfaces from oxidation.
Suitable for automated assembly; verify clamp direction during production.
Follow recommended soldering and crimping parameters for stable electrical performance.
|
|
