4Pin Fan Connector Sleeved Extension Cable – 2.54 mm Pitch Electrical Wire Harness for PC Case / Server Cooling

Name: 4Pin Fan Connector Sleeved Extension Cable 254 mm Pitch Electrical Wire Harness for PC Case Server Cooling
Brand: ShuangYi
Price: 1.44 USD

Cheap 4Pin Fan Connector Sleeved Extension Cable – 2.54 mm Pitch Electrical Wire Harness for PC Case / Server Cooling for sale

Brand Name : ShuangYi

Model Number : MCIO 8X TO MCIO 4X-2 L=500MM

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $1.44-2.21 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : 4Pin fan connector extension cable with braided sleeve

Application : PWM / DC fan power and tach / control signal transmission

Pin Count : 4 pins (12 V power, GND, tach signal, PWM control)

Cable Structure : Shielded differential pair cable for high-speed transmission

Wire Gauge : 22–26 AWG (customizable)

Insulation : PVC electronic wire, 80 °C / 300 V rating

Max Data Rate : Up to 6 Gb/s transmission

Conductor Material : Oxygen-free copper for low-loss power and signal paths

Housing Material : Flame-retardant PA / PBT, UL94V-0 compatible

Operating Voltage : Low-voltage electronic signal application

Operating Temperature : -20 °C to +80 °C

Compliance : RoHS / REACH

Custom Options : Length, color, straight/right-angle mix, PCB side plug, label printing and bundled harness customization

Contact Now

Product Description

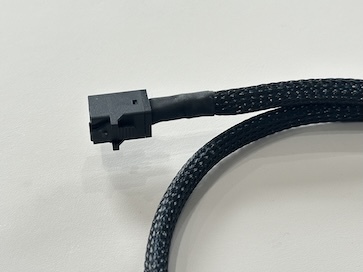

This braided 4Pin fan connector cable is designed to extend or relocate cooling fans while keeping wiring clean and protected. A 4Pin female housing on one end mates to the fan, while a right-angle 4Pin male plug connects to the motherboard or fan hub header. The assembly carries both 12 V power and the tach / PWM control signals, allowing precise fan speed regulation without loss of functionality.

Stranded copper cores and tightly twisted conductors provide reliable signal transmission and stable current delivery to the fan terminals. The entire harness is wrapped in a black PET braided sleeve that resists abrasion, improves airflow and enhances the appearance of high-end builds. This compact wire cable is suitable for desktop systems, gaming rigs, 1U/2U server chassis and embedded electronic equipment where neat, robust cooling connections are required. OEM harnesses can integrate different fan connectors, additional pins or mixed power / control cables for special automotive electronics and industrial controllers.

4Pin Fan Connector Sleeved Extension Cable – 2.54 mm Pitch Electrical Wire Harness for PC Case / Server Cooling

Product Type	4Pin fan connector extension cable with braided sleeve
Application	PWM / DC fan power and tach / control signal transmission
Connector A	4Pin fan female connector, latch type
Connector B	4Pin fan male connector, right-angle, latch type
Pin Count	4 pins (12 V power, GND, tach signal, PWM control)
Pitch	2.54 mm (0.1") standard fan / PCB header pitch
Wire Type	Stranded copper electrical wire cable
Wire Gauge	22–26 AWG (customizable)
Conductor Material	Oxygen-free copper for low-loss power and signal paths
Insulation	PVC electronic wire, 80 °C / 300 V rating
Outer Sleeve	Black PET braided sleeving for abrasion and bundle protection
Color	Black (other colors on request)
Rated Voltage	12 V DC (other low-voltage systems supported by design)
Rated Current	Up to 1 A per pin (depends on wire gauge and length)
Cable Length	Typical 30–60 cm; length customization available
Terminal Type	Crimped copper terminals, tin plated
Operating Temperature	-20 °C to +80 °C
Compliance	RoHS / REACH compliant
Custom Options	Length, pitch, pinout, sleeving color, label printing, automotive / server grade materials, board-end connector to PCB headers or other power / signal connectors

Applications

Extending CPU or case fan reach to hidden fan hubs or rear PCB headers in desktop and gaming PCs

Organizing fan wiring in rack-mount servers and network equipment for improved airflow and serviceability

Cooling solutions in industrial control cabinets, 3D printers and other electronic enclosures using standard 4Pin fan headers

Custom LED or sensor modules that reuse 4Pin fan style connectors for combined low-current power and feedback signals

Prototype and small-batch projects requiring tailored fan harnesses with specific length, routing and connector combinations

Precautions

Verify that the 4Pin layout (12 V / GND / tach / PWM) matches the header and fan scheme used in the target system before connection.

Avoid exceeding the specified current rating; high-power blower fans may require heavier gauge wire or separate power cables.

Do not sharply bend the cable near the over-molded ends to protect the crimped terminals and maintain stable signal quality.

Keep the harness away from sharp metal edges and hot components inside the chassis to prevent jacket damage.

For larger projects, multi-fan harnesses, different pitch fan connectors, or combined fan-plus-LED wiring looms can be produced to match your mechanical design.
