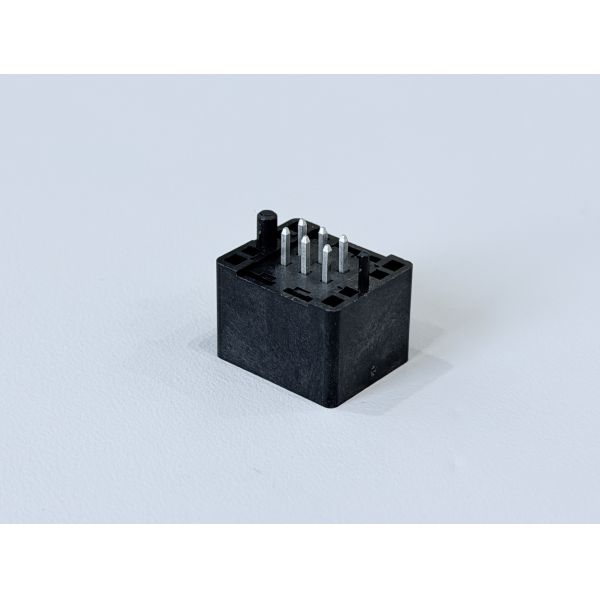

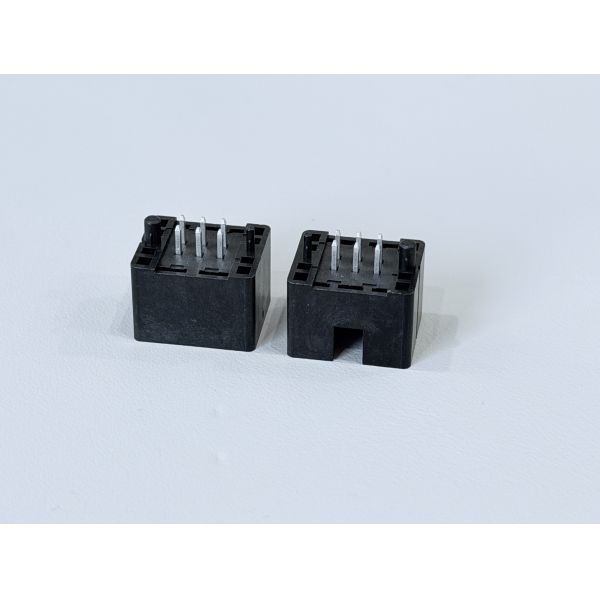

This 2.54mm pitch 2×3 DIP type connector is engineered for stable and high-reliability PCB power and signal transmission. Built with PA9T UL94-V0 high-temperature housing, it provides excellent thermal stability and supports soldering environments up to 265°C.
The terminals use SQ0.64 copper alloy / H65 brass with nickel and tin plating, ensuring corrosion resistance, strong conductivity, and long-term durability. With a 5A per-pin current rating, this connector is suitable for medium-power applications requiring robust electrical performance.
The vertical DIP structure ensures secure through-hole soldering, making it ideal for industrial, automotive, communication, server, and consumer electronic devices where stable board connection is critical.
This connector delivers strong mechanical retention, excellent heat resistance, and reliable electrical performance for demanding PCB applications.
| Connector Type | 2×3 Pin DIP PCB Connector |
| Pitch | 2.54 mm |
| Pin Count | 6 Pins (2×3) |
| Mounting Type | Vertical DIP / Through-Hole |
| Housing Material | PA9T UL94-V0 (Black) |
| Terminal Material | Copper Alloy SQ0.64 / Brass H65 |
| Plating | Nickel ≥50 µ” + Tin ≥100 µ”, Salt Spray 24H |
| Rated Current | AWG22#, 5A per pin |
| Rated Voltage | 250V DC |
| Insulation Resistance | ≥1000 MΩ |
| Contact Resistance | ≤30 mΩ Max |
| Dielectric Withstand Voltage | 500V AC / Minute |
| Operating Temperature | −40°C to +85°C |
| Reflow Temperature Resistance | 265°C ± 5°C |
| Single-Pin Retention (Before Reflow) | ≥1.0 Kgf |
| Environmental | HF (Halogen-Free) |
| Application | PCB power & signal connection |
⚙️ Applications
- PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including low-voltage signals, data transmission, and control interfaces.
- Consumer Electronics: Common in smart home appliances, printers, cameras, displays, controllers, and handheld devices for internal signal routing.
- Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters, robotics modules, and automation I/O interfaces.
- Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication boards, and signal expansion connectors.
- Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards, infotainment systems, and on-board control interfaces.
- Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network communication cards.
- IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules, sensor nodes, and embedded system expansion ports.
- Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and low-power control circuits.
- Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.
⚠️ Notes
- Ensure Correct Pin Alignment: Check orientation and positioning before mating to avoid mis-insertion, bent pins, or PCB pad damage.
- Do Not Exceed Electrical Ratings: Follow the specified current and voltage limits to prevent overheating or contact failure.
- Proper Insertion and Extraction Force: Avoid excessive force during mating/unmating to prevent deformation, cracked solder joints, or pin damage.
- Keep Contact Surfaces Clean: Ensure terminals remain free from dust, oil, oxidation, or contaminants that reduce conductivity.
- Follow Recommended Soldering Conditions: Use appropriate soldering temperature profiles according to plastic materials such as LCP, PA6T, PA66, or PBT.
- Verify PCB Hole Tolerance: Incorrect hole size may cause inadequate solder filling or mechanical instability.
- Avoid Mechanical Stress After Assembly: Do not apply lateral pressure or bending forces, especially for SMT pin headers.
- Maintain Proper Storage Conditions: Store in a dry, dust-free environment to prevent terminal oxidation; use anti-static packaging if required.
- Confirm Compatibility with Female Header: Ensure matching pitch, pin count, height, and contact design to avoid mating failure.
- Choose Correct Plating Specification: Select proper plating (gold, tin, nickel) based on your application’s durability, corrosion resistance, and signal reliability needs.
