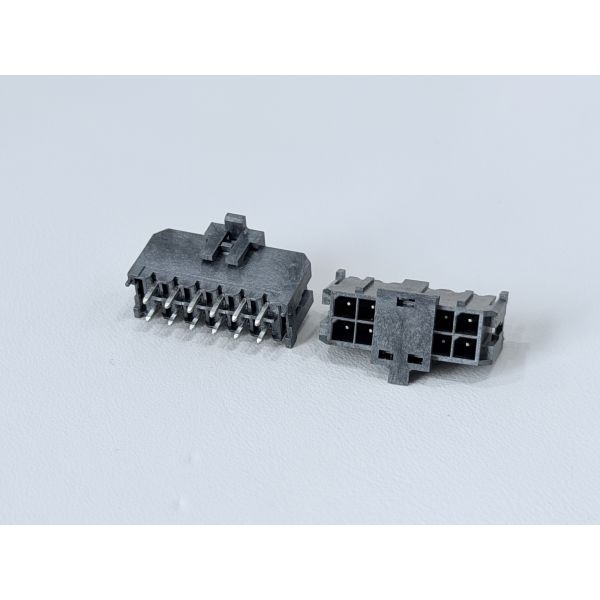

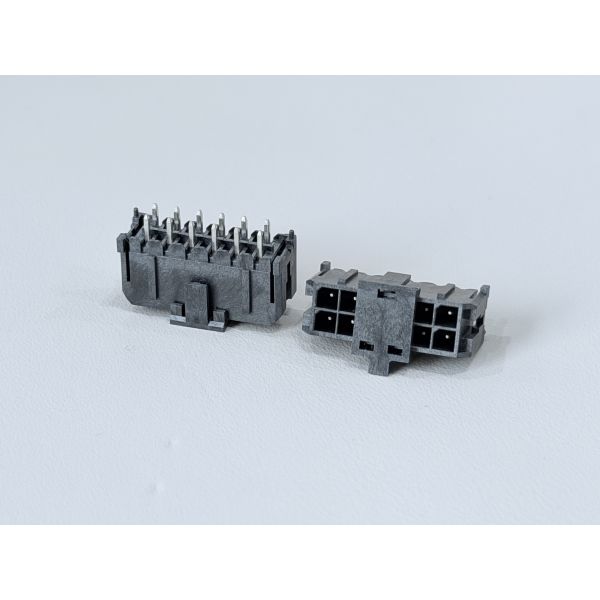

This Micro-Fit 3.0 2×6 pin header connector is designed for compact, high-current power and signal transmission on densely populated PCBs.
Square copper-alloy pins with 50 μ" nickel and 100 μ" tin plating ensure low contact resistance, strong solderability and excellent corrosion resistance after salt-spray testing. With up to 12.5 A per circuit at 250 V AC/DC, it easily supports low-voltage power rails and mixed signal lines for modern electronics.
The vertical through-hole design with positioning peg provides secure PCB anchoring and stable performance under vibration, cable pull and repeated mating.
Glass-fiber-reinforced LCP housings rated UL94 V-0 and halogen-free withstand lead-free soldering profiles and harsh operating temperatures from −40 °C to +105 °C. The 3.0 mm pitch is compatible with many Micro-Fit-style footprints, enabling easy replacement or second-source options in existing Tyco / Amphenol layouts.
Combined with IDC or crimped wire harnesses, this connector offers a flexible, customized interconnection solution for power distribution, control signals and data links.
| Product type | Micro-Fit 3.0 pin header connector (male) |
| Function | Wire-to-board electrical / electronic power & signal transmission |
| Series / pitch | Micro-Fit 3.0, 3.0 mm pitch |
| Positions | 2×6 pins (12 pins), dual row |
| Mounting style | Vertical through-hole PCB, with locating peg/post, external pin length 2.6 mm |
| Terminal material | Copper alloy C1100 square pins |
| Plating | Ni 50 μ" min under-plating, matte Sn 100 μ" min on pins |
| Rated current | Up to 12.5 A per circuit (AWG16 wire) |
| Rated voltage | 250 V AC / DC |
| Contact resistance | ≤ 20 mΩ max |
| Insulation resistance | ≥ 1000 MΩ min |
| Dielectric withstand | 1500 V AC / minute |
| Salt-spray test | 24 h |
| Operating temperature | −40 °C to +105 °C |
| Pin retention force | ≥ 1.5 Kgf per pin before & after reflow |
| Housing material | LCP E130I black, G/F reinforced, UL94 V-0, HF |
| Cap / insulator | LCP black G/F, UL94 V-0 |
| Environmental | Halogen-free, RoHS-compliant |
| Typical mating | Micro-Fit 3.0 female housing & crimp terminals / custom IDC wire harness |
⚙️ Applications
- PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including low-voltage signals, data transmission, and control interfaces.
- Consumer Electronics: Common in smart home appliances, printers, cameras, displays, controllers, and handheld devices for internal signal routing.
- Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters, robotics modules, and automation I/O interfaces.
- Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication boards, and signal expansion connectors.
- Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards, infotainment systems, and on-board control interfaces.
- Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network communication cards.
- IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules, sensor nodes, and embedded system expansion ports.
- Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and low-power control circuits.
- Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.
