Power test cable connector with dual safety banana plugs to DC power socket, electrical wire harness for battery charger, inverter, solar system and

Name: Power test cable connector with dual safety banana plugs to DC power socket electrical wire harness for battery charger inverter solar system and
Brand: ShuangYi
Price: 1.44 USD

Cheap Power test cable connector with dual safety banana plugs to DC power socket, electrical wire harness for battery charger, inverter, solar system and for sale

Brand Name : ShuangYi

Model Number : Medical cable D-sub 7P Mx2 TO nextron Connector(RMA G0P4220140)

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $1.44-2.21 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : USB Type-C male connector to USB Type-C male right-angle connector

Application : Power charging and electronic signal transmission cable

Rated Voltage : 30 V max (signal use)

Characteristic Impedance : 100 Ω differential (typical SAS channel)

Wire Gauge : 22/28 AWG combined (power/signal), other gauges customizable

Insulation : PVC electronic wire, 80 °C / 300 V rating

Max Data Rate : Up to 6 Gb/s transmission

Conductor Material : Oxygen-free copper for low-loss power and signal paths

Housing Material : Flame-retardant PA / PBT, UL94V-0 compatible

Operating Voltage : Low-voltage electronic signal application

Operating Temperature : -20 °C to +80 °C

Compliance : RoHS / REACH

Custom Options : Length, color, straight/right-angle mix, PCB side plug, label printing and bundled harness customization

connector housing : High-temperature plastic over-mold with strain relief

Contact Now

Product Description

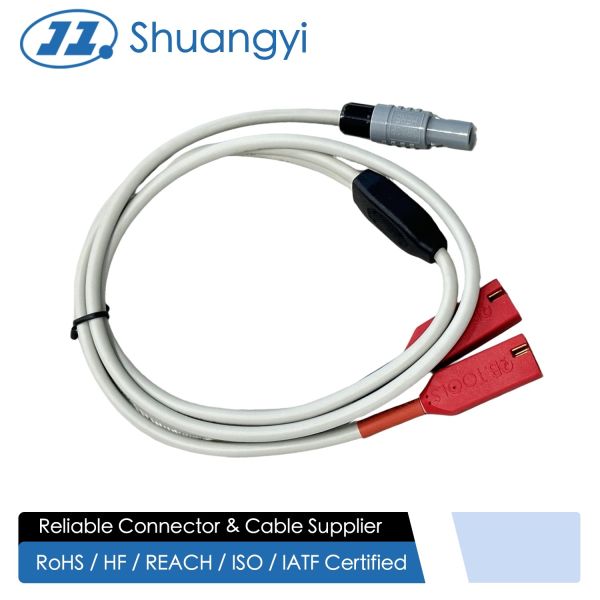

This power cable assembly combines two insulated banana plug terminals with a robust DC power connector to provide a safe and reliable interface between test instruments and DC equipment. The stranded tinned copper wire ensures efficient electrical transmission with minimal power loss, while the flexible white jacket allows easy routing inside cabinets, racks and charging stations. An integrated ferrite core helps reduce electromagnetic interference on power and signal circuits, improving stability in sensitive electronic and PCB-based systems.

The harness can be fully customized to match different connector series, pin layouts and current ratings. Options include alternative terminal types, wire gauges, jacket materials and printed identification, making it suitable for OEM battery chargers, automotive electronics and industrial power supplies that require tailored wiring solutions.

Power test cable connector with dual safety banana plugs to DC power socket, electrical wire harness for battery charger, inverter, solar system and

Product type	Power test cable / DC power wire harness
Connector 1	Dual insulated safety banana plug terminals (red polarity)
Connector 2	DC power connector socket, gray housing, locking sleeve
Conductor material	Stranded tinned copper wire for low-loss power transmission
Wire gauge	16–18 AWG (other gauges customizable)
Rated voltage	Up to 600 V DC, depending on cable size and insulation
Rated current	Up to 20 A continuous (higher current versions available)
Outer jacket	Flexible PVC or XLPE insulation, white cable jacket
Cable length	Standard 1.0–2.0 m; customized length and tolerance available
Ferrite core	Integrated ferrite sleeve for EMI/RFI suppression on power and signal lines
Working temperature	-20°C to +105°C typical
Application area	Automotive test benches, battery chargers, inverter racks, solar controllers, server power modules
Custom options	Wire color, printing, connector type, labeling and terminal pitch can be customized

Applications

Connecting laboratory power supplies to battery packs, DC loads and electronic testers

Power harness for inverter, solar controller and energy-storage systems in R&D environments

Interface cable between automotive diagnostic equipment and vehicle DC power terminals

Internal power link between server power modules and distribution boards in test racks

Temporary connection for PCB prototypes, power converters and electronic evaluation boards

Precautions

Verify voltage, current and polarity before connecting to prevent damage to equipment.

Ensure banana plug terminals and DC connector are fully inserted and locked to avoid overheating or arcing.

Do not exceed the specified current rating; choose a larger wire gauge for higher power applications.

Avoid sharp bends, abrasion and contact with hot surfaces; secure the cable with clips or cable ties where necessary.

Disconnect the power source before plugging or unplugging the connector during maintenance or reconfiguration.
