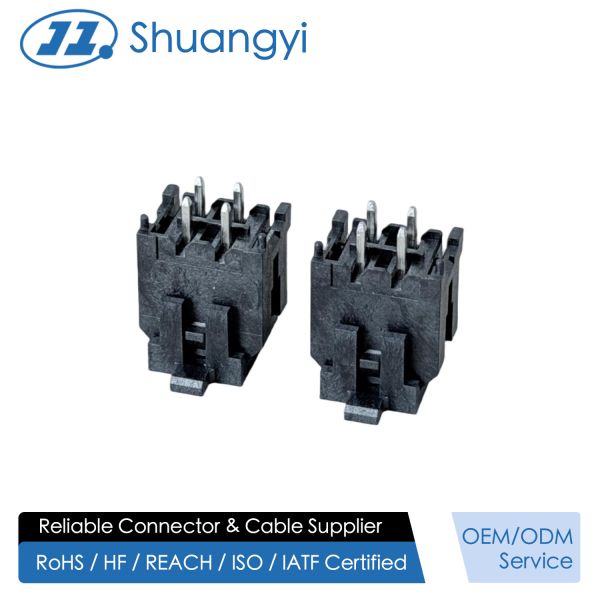

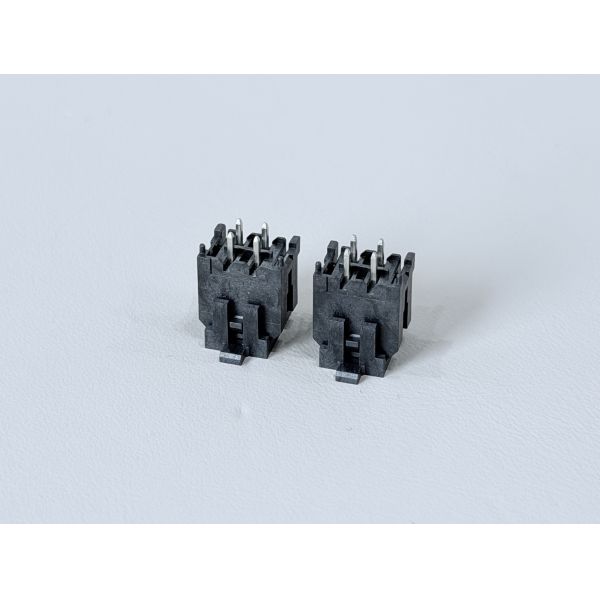

This Micro-Fit 3.0 straight pin header connector delivers high-current performance and reliable PCB interconnection for power and signal transmission.
It features a 2×2 pin dual-row design, a 3.00 mm pitch, and through-hole mounting, making it suitable for high-density boards and stable power delivery.
The terminals are made from Copper Alloy C1100 with 50μ” nickel + 100μ” tin plating, providing low contact resistance, excellent conductivity, and corrosion protection.
The housing uses LCP E130I UL94-V0, offering heat resistance and flame-retardant performance for industrial and automotive applications.
With a rated current of up to 12.5A per pin, strong retention force, and reliable electrical characteristics, this connector is ideal for demanding power-supply modules and compact PCB assemblies.
| Product Type | Micro-Fit 3.0 Straight Pin Header Connector |
| Pin Configuration | 2×2 Pin, Dual Row |
| Pitch | 3.00 mm |
| Mounting Type | Through-Hole / DIP Type |
| Material (Housing) | LCP E130I Black, UL94-V0 |
| Material (Terminal) | Copper Alloy C1100 |
| Plating | Ni 50μ” Min + Sn 100μ” Min |
| Rated Current | Up to 12.5A (AWG #16) |
| Rated Voltage | 250V AC / DC |
| Contact Resistance | ≤20mΩ Max |
| Insulation Resistance | ≥1000MΩ |
| Withstanding Voltage | 1500V AC / Minute |
| Salt Spray Test | 24 Hours |
| Operating Temperature | –40°C to +105°C |
| Pin Retention Force | ≥1.5 Kgf (before reflow) |
| Environmental Compliance | HF (Halogen Free) |
⚙️ Applications
- PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including low-voltage signals, data transmission, and control interfaces.
- Consumer Electronics: Common in smart home appliances, printers, cameras, displays, controllers, and handheld devices for internal signal routing.
- Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters, robotics modules, and automation I/O interfaces.
- Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication boards, and signal expansion connectors.
- Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards, infotainment systems, and on-board control interfaces.
- Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network communication cards.
- IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules, sensor nodes, and embedded system expansion ports.
- Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and low-power control circuits.
- Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.
⚠️ Notes
- Ensure Correct Pin Alignment: Check orientation and positioning before mating to avoid mis-insertion, bent pins, or PCB pad damage.
- Do Not Exceed Electrical Ratings: Follow the specified current and voltage limits to prevent overheating or contact failure.
- Proper Insertion and Extraction Force: Avoid excessive force during mating/unmating to prevent deformation, cracked solder joints, or pin damage.
- Keep Contact Surfaces Clean: Ensure terminals remain free from dust, oil, oxidation, or contaminants that reduce conductivity.
- Follow Recommended Soldering Conditions: Use appropriate soldering temperature profiles according to plastic materials such as LCP, PA6T, PA66, or PBT.
- Verify PCB Hole Tolerance: Incorrect hole size may cause inadequate solder filling or mechanical instability.
- Avoid Mechanical Stress After Assembly: Do not apply lateral pressure or bending forces, especially for SMT pin headers.
- Maintain Proper Storage Conditions: Store in a dry, dust-free environment to prevent terminal oxidation; use anti-static packaging if required.
- Confirm Compatibility with Female Header: Ensure matching pitch, pin count, height, and contact design to avoid mating failure.
- Choose Correct Plating Specification: Select proper plating (gold, tin, nickel) based on your application’s durability, corrosion resistance, and signal reliability needs.
