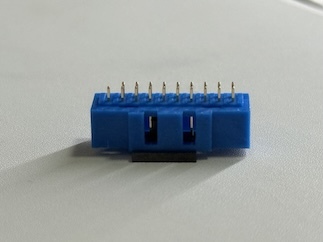

20-Pin IDC Dual-Row Enclosed Male Connector, Pin-Header Type, Exposed 3.2mm, Electronic PCB Signal Connector for Custom Wiring & Transmission Systems

Name: 20Pin IDC DualRow Enclosed Male Connector PinHeader Type Exposed 32mm Electronic PCB Signal Connector for Custom Wiring amp Transmission Systems
Brand: ShuangYi
Price: 0.18 USD

Cheap 20-Pin IDC Dual-Row Enclosed Male Connector, Pin-Header Type, Exposed 3.2mm, Electronic PCB Signal Connector for Custom Wiring & Transmission Systems for sale

Brand Name : ShuangYi

Model Number : IDC-20M-A1D1A2-02MH

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.18-0.27 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Connector Type : IDC Dual-Row Fully-Enclosed Male Connector

Number of Pins : 20 Pins (2×10)

Pitch : 2.54 mm (standard IDC pitch)

Contact Type : Pin-Header, Through-Hole

Exposure Length : 3.2 mm exposed pins

Mounting Style : PCB Through-Hole

Insulator Material : High-temperature thermoplastic

Contact Material : Copper Alloy

Plating : Tin / optional Gold-Flash

Rated Voltage : 250V AC / DC

Rated Current : 1A per contact

Operating Temperature : −40°C to +105°C

Packaging : Tape & reel packaging (as shown in file)

Application Fields : Automotive electronics, industrial control, servers, consumer devices, PCB wiring systems, signal transmission modules

Customization : Pin count, pitch, cable type, plating thickness, and housing color customizable

Contact Now

Product Description

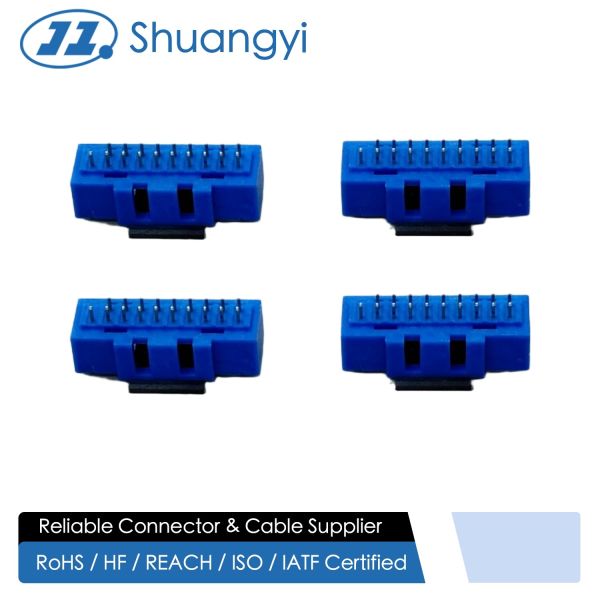

This 20-Pin IDC Dual-Row Enclosed Male Connector is designed for high-reliability electronic and signal-transmission applications. Built with a fully enclosed housing and 3.2mm exposed pins, it offers secure alignment, stable mating force, and enhanced durability for PCB mounting.

The reinforced pin-header structure ensures excellent conductivity, while the high-temperature thermoplastic housing guarantees long-term resistance to heat, vibration, and mechanical stress.

Engineered for modern electronics, this connector supports precise PCB signal routing and offers stable electrical performance for multi-pin wiring harnesses. Custom plating and configuration options allow seamless integration into automotive, industrial, and server-grade systems.

20-Pin IDC Dual-Row Enclosed Male Connector, Pin-Header Type, Exposed 3.2mm, Electronic PCB Signal Connector for Custom Wiring & Transmission Systems

Connector Type	IDC Dual-Row Fully-Enclosed Male Connector
Number of Pins	20 Pins (2×10)
Pitch	2.54 mm (standard IDC pitch)
Contact Type	Pin-Header, Through-Hole
Exposure Length	3.2 mm exposed pins
Mounting Style	PCB Through-Hole
Insulator Material	High-temperature thermoplastic
Contact Material	Copper Alloy
Plating	Tin / optional Gold-Flash
Rated Voltage	250V AC / DC
Rated Current	1A per contact
Operating Temperature	−40°C to +105°C
Packaging	Tape & reel packaging (as shown in file)
Application Fields	Automotive electronics, industrial control, servers, consumer devices, PCB wiring systems, signal transmission modules
Customization	Pin count, pitch, cable type, plating thickness, and housing color customizable

Applications

PCB-mounted signal transmission modules

Industrial automation equipment

Automotive electronic control units

Consumer electronic devices

Server and storage hardware

Communication interface boards

Customized wiring harness assemblies

Precautions

Ensure correct pin alignment before insertion to avoid bent contacts.

Suitable for PCB through-hole soldering; verify pad layout before assembly.

Keep connectors away from excessive moisture, dust, or corrosive environments.

Follow recommended operating temperature for stable long-term performance.

For high-current or high-frequency requirements, select enhanced plating options.

Reel packaging is optimized for automated pick-and-place; handle with care to maintain tape integrity.
