3.0mm Pitch 2×4-Pin Fan Connector Housing | Dual-Row Electronic Signal Connector for PCB & Wire Harness Applications

Name: 30mm Pitch 24Pin Fan Connector Housing DualRow Electronic Signal Connector for PCB amp Wire Harness Applications
Brand: ShuangYi
Price: 1.44 USD

Cheap 3.0mm Pitch 2×4-Pin Fan Connector Housing | Dual-Row Electronic Signal Connector for PCB & Wire Harness Applications for sale

Brand Name : ShuangYi

Model Number : SY-B220006-0

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $1.44-2.21 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : Dual-Row Fan Connector Housing (2×4 Pins)

Pin Count : 8 Pins (2×4)

Mount Type : Plug-in / Wire-to-Board Connector Housing

Material : High-temperature resistant black thermoplastic

Pitch : 3.0 mm

Flammability Rating : UL94V-0 (optional per customization)

Fit Terminal Type : Compatible with stamped crimp terminals (per drawing)

Operating Voltage : ≤ 250 V (typical for signal/power fan systems)

Operating Current : 3–5 A per pin (depending on terminal selection & wire gauge)

Insulation Resistance : ≥ 1000 MΩ (per drawing notes)

Dielectric Withstand Voltage : 1500 V AC 1 minute

Temperature Range : −40°C to +105°C

Mating Style : Secure locking structure with reinforced plug-in guide

Customization : Pin count, pitch, housing color, terminal plating, wire harness assembly

Contact Now

Product Description

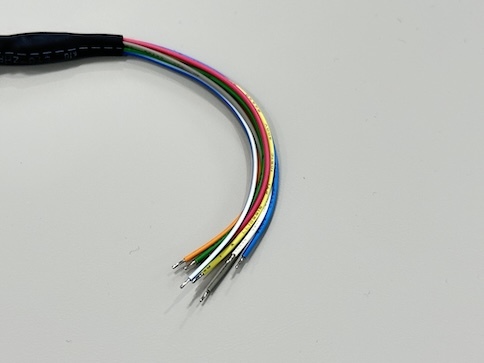

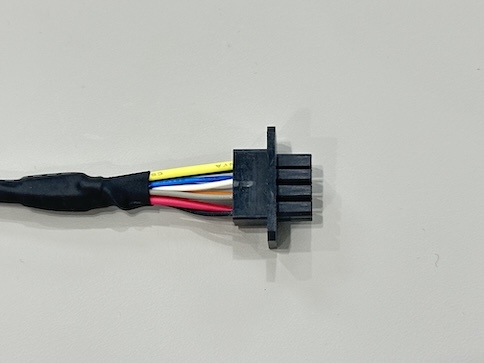

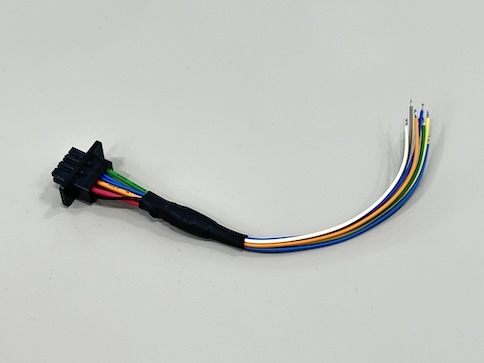

This 2×4-pin fan connector housing is designed for reliable electronic signal and low-power transmission in cooling modules and PCB assemblies. The 3.0 mm pitch dual-row layout ensures stable contact spacing and supports both wire-to-board and signal harness configurations.
Made from high-temperature thermoplastic, the housing maintains structural strength in demanding environments such as servers, automotive electronics, and industrial cooling systems.

It features a reinforced plug-in guide structure to ensure smooth mating and minimize insertion force while maintaining secure retention. The connector is compatible with standard crimp-type terminals and supports customized cable assemblies.

3.0mm Pitch 2×4-Pin Fan Connector Housing | Dual-Row Electronic Signal Connector for PCB & Wire Harness Applications

Product Type	Dual-Row Fan Connector Housing (2×4 Pins)
Pitch	3.0 mm
Pin Count	8 Pins (2×4)
Mount Type	Plug-in / Wire-to-Board Connector Housing
Material	High-temperature resistant black thermoplastic
Flammability Rating	UL94V-0 (optional per customization)
Fit Terminal Type	Compatible with stamped crimp terminals (per drawing)
Operating Voltage	≤ 250 V (typical for signal/power fan systems)
Operating Current	3–5 A per pin (depending on terminal selection & wire gauge)
Insulation Resistance	≥ 1000 MΩ (per drawing notes)
Dielectric Withstand Voltage	1500 V AC 1 minute
Temperature Range	−40°C to +105°C
Mating Style	Secure locking structure with reinforced plug-in guide
Color	Black
Customization	Pin count, pitch, housing color, terminal plating, wire harness assembly

Applications

Cooling fan modules

Server and workstation cooling systems

Automotive electronic control units (ECU)

Power supply signal connectors

Industrial equipment and instrumentation

PCB-mounted signal and power interfaces

Custom cable assemblies and wiring harnesses

Precautions

Ensure terminals match the specified crimp type for proper retention force.

Avoid excessive pulling or bending of wires during installation.

Verify pitch (3.0 mm) and pin orientation before mating to prevent damage.

Not suitable for high-current power transmission unless using upgraded plated terminals.

Keep connectors free from dust or conductive debris to ensure signal integrity.
