IDC 20-Pin Dual-Row Fully-Shrouded Male Connector | 2.00mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness & Industrial Applicatio

Name: IDC 20Pin DualRow FullyShrouded Male Connector 200mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness amp Industrial Applicatio
Brand: ShuangYi
Price: 0.29 USD

Cheap IDC 20-Pin Dual-Row Fully-Shrouded Male Connector | 2.00mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness & Industrial Applicatio for sale

Brand Name : ShuangYi

Model Number : IDC-20F-A6S2A5-00NH

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.29-0.44 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : IDC 20-Pin Dual-Row Male Connector

Contact Type : Pin-Header, Fully-Enclosed Housing

Pitch : 2.00 mm (Dual-Row)

Pin Count : 20 Pins

Plating : Gold Flash (G/F) on Contact Area

Base Material : High-temperature Thermoplastic, UL-rated

Terminal Material : Copper Alloy

Current Rating : 1.0A per pin (typical)

Voltage Rating : 250V AC

Contact Resistance : ≤ 30 mΩ

Insulation Resistance : ≥ 1000 MΩ

Withstand Voltage : 500V AC/min

Operating Temperature : –40°C to +105°C

Mounting Style : Through-Hole / PCB Soldering

Durability : ≥ 500 mating cycles

Customization : Pin number, pitch, cable assembly, housing color available

Contact Now

Product Description

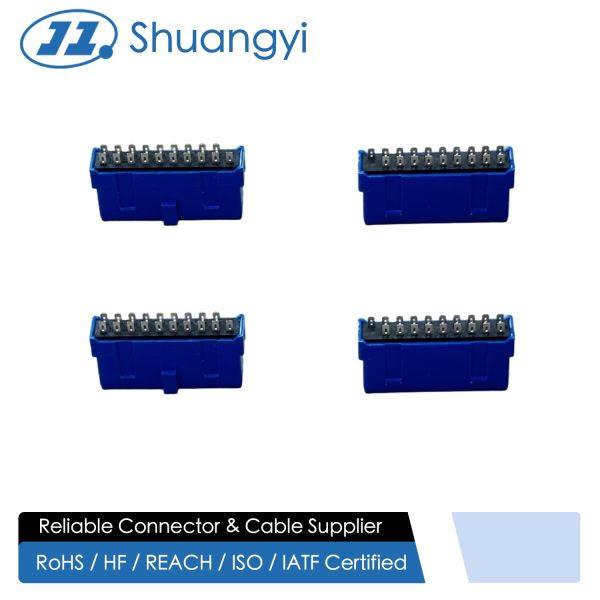

This IDC 20-Pin Dual-Row Male Connector is engineered for high-density PCB signal transmission and stable wire-to-board interconnections. The enclosed shield-type housing ensures better mechanical protection and minimizes external interference. Gold-flash terminals provide improved conductivity, corrosion resistance, and long-term reliability in various industrial and commercial environments.

The connector is suitable for IDC ribbon cables and supports automated soldering processes. Its durable thermoplastic housing withstands elevated temperatures, making it ideal for continuous use in demanding applications.

Product Type	IDC 20-Pin Dual-Row Male Connector
Contact Type	Pin-Header, Fully-Enclosed Housing
Pitch	2.00 mm (Dual-Row)
Pin Count	20 Pins
Plating	Gold Flash (G/F) on Contact Area
Base Material	High-temperature Thermoplastic, UL-rated
Terminal Material	Copper Alloy
Current Rating	1.0A per pin (typical)
Voltage Rating	250V AC
Contact Resistance	≤ 30 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	500V AC/min
Operating Temperature	–40°C to +105°C
Mounting Style	Through-Hole / PCB Soldering
Durability	≥ 500 mating cycles
Customization	Pin number, pitch, cable assembly, housing color available

Applications

Server backplane signal connectors

Industrial control systems

Communication equipment and data transmission modules

Automotive dashboards and infotainment systems

Consumer electronics and smart devices

Embedded computing boards

Customized wire harness assemblies

Precautions

Ensure proper alignment before insertion to prevent terminal damage.

Avoid over-bending ribbon cables connected to the IDC header.

Keep terminals clean and free from dust or oxidation to maintain stable conductivity.

For high-vibration environments, consider additional mechanical fixing or locking features.

Recommended to follow standard soldering temperature curves for PCB mounting.
