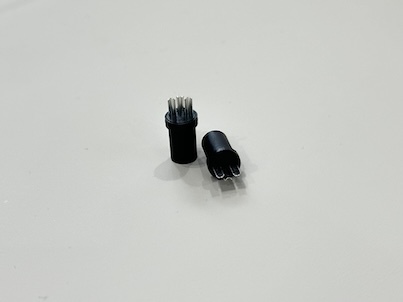

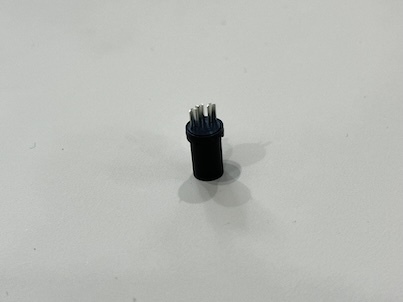

3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized

Name: 3P Female Connector WiretoBoard Circular Terminal Connector Electronic Power Signal PCB Connector Customized
Brand: ShuangYi
Price: 0.15 USD

Cheap 3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized for sale

Brand Name : ShuangYi

Model Number : 050-Z032Z0-010R

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.15-0.24 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : 3P Female Wire-to-Board Circular Connector

Pin Count : 3P

Contact Type : Female Terminals (Gold Plating Test Points)

Housing Diameter : Ø7.00 mm (front view)

Pin Diameter : Ø1.00 mm REF

Overall Height : 14.45 ± 0.30 mm

Mounting Style : Through-hole / PCB soldering

Pitch (Between Pins) : 3.50 mm

Base Thickness : 6.50 mm

Contact Resistance : Low resistance (per drawing spec)

Withstand Voltage : No breakdown under specified test conditions

Insulation Resistance : High insulation per test requirements

Terminal Plating : Nickel plating (Ni) + Tin / Gold plating area

Salt Spray Test : Required per drawing specifications

Compliance : RoHS 2.0 + REACH

Contact Now

Product Description

This 3-Pin Female Wire-to-Board Circular Connector is designed for stable electrical and signal transmission in compact electronic devices. The connector features a Ø7.00 mm circular housing and high-precision female terminals with nickel and gold/tin plating, ensuring excellent conductivity, corrosion resistance, and long-term reliability. The through-hole structure provides solid PCB mounting, suitable for applications requiring durable mating cycles and secure mechanical retention.

With high insulation resistance, low contact resistance, and compliance with RoHS 2.0 + REACH, this connector is ideal for power supply modules, sensor interfaces, industrial control boards, lighting equipment, communication devices, and various customized wiring harness solutions.

3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized

Product Type	3P Female Wire-to-Board Circular Connector
Pin Count	3 Pins
Contact Type	Female Terminals (Gold Plating Test Points)
Housing Diameter	Ø7.00 mm (front view)
Pin Diameter	Ø1.00 mm REF
Overall Height	14.45 ± 0.30 mm
Mounting Style	Through-hole / PCB soldering
Pitch (Between Pins)	3.50 mm
Base Thickness	6.50 mm
Contact Resistance	Low resistance (per drawing spec)
Withstand Voltage	No breakdown under specified test conditions
Insulation Resistance	High insulation per test requirements
Terminal Plating	Nickel plating (Ni) + Tin / Gold plating area
Salt Spray Test	Required per drawing specifications
Compliance	RoHS 2.0 + REACH

Applications

Power signal transmission in compact devices

PCB modules in industrial control systems

LED lighting and driver boards

Communication equipment & smart devices

Custom wiring harnesses for automotive or machinery

Sensors & low-voltage electronic circuits

Precautions

Ensure the PCB hole size and layout match the connector dimensions.

Avoid excessive insertion force to protect female terminals.

Follow recommended soldering temperatures to prevent housing deformation.

Plating and environmental resistance may vary depending on the selected finish.

Store in a dry, dust-free environment to maintain terminal conductivity.

3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized

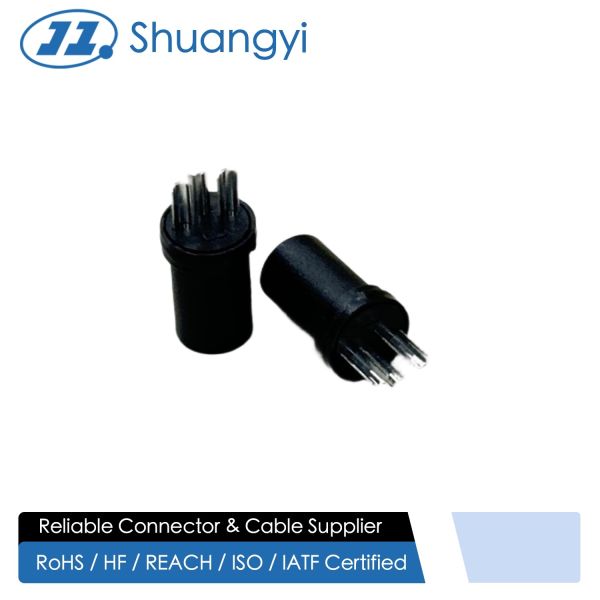

3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized Images
