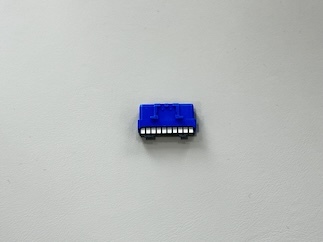

IDC 20-Pin Dual-Row Fully-Shrouded Male Connector | 2.00mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness & Industrial Applicatio

Name: IDC 20Pin DualRow FullyShrouded Male Connector 200mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness amp Industrial Applicatio
Brand: ShuangYi
Price: 0.21 USD

Cheap IDC 20-Pin Dual-Row Fully-Shrouded Male Connector | 2.00mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness & Industrial Applicatio for sale

Brand Name : ShuangYi

Model Number : IDC-20F-A4S3A6-00NH

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.21-0.32 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Connector Type : IDC Dual-Row Fully-Shrouded Male Connector

Pin Count : 20 pins (2×10)

Pitch : 2.00 mm

Mounting Style : Through-hole pin header, solder-type

Housing Material : Thermoplastic, high-temperature resistant

Contact Material : Copper alloy

Plating : Gold-flash (G/F), exposed pin length approx. 3.2 mm

Current Rating : 1 A per pin (typical IDC spec)

Voltage Rating : 250V AC/DC (typical)

Contact Resistance : ≤ 30 mΩ

Insulation Resistance : ≥ 1000 MΩ

Dielectric Withstanding Voltage : 500V AC/minute

Durability : ≥ 500 cycles

Operating Temperature : −40°C to +105°C

Compliance : RoHS, environmental-grade plating

Customization : Pin count, plating thickness, housing color, wire termination available

Contact Now

Product Description

This IDC 20-Pin Dual-Row Fully-Shrouded Male Connector is designed for reliable PCB-to-wire and PCB-to-PCB electrical interface applications. The fully-enclosed housing provides enhanced mechanical protection and ensures secure mating with IDC ribbon cables. Its 2.00mm pitch, exposed gold-flash terminals, and reinforced pin structure deliver excellent conductivity, signal stability, and long-term durability.

The connector is suitable for electronic devices requiring compact, stable, and high-density pin configurations. Gold-flash plating improves corrosion resistance, supports consistent transmission quality, and ensures dependable performance in demanding industrial environments.

IDC 20-Pin Dual-Row Fully-Shrouded Male Connector | 2.00mm Pitch Electronic PCB Pin Header Terminal Connector for Wire Harness & Industrial Applicatio

Connector Type	IDC Dual-Row Fully-Shrouded Male Connector
Pin Count	20 pins (2×10)
Pitch	2.00 mm
Mounting Style	Through-hole pin header, solder-type
Housing Material	Thermoplastic, high-temperature resistant
Contact Material	Copper alloy
Plating	Gold-flash (G/F), exposed pin length approx. 3.2 mm
Current Rating	1 A per pin (typical IDC spec)
Voltage Rating	250V AC/DC (typical)
Contact Resistance	≤ 30 mΩ
Insulation Resistance	≥ 1000 MΩ
Dielectric Withstanding Voltage	500V AC/minute
Durability	≥ 500 cycles
Operating Temperature	−40°C to +105°C
Compliance	RoHS, environmental-grade plating
Customization	Pin count, plating thickness, housing color, wire termination available

Applications

Computer servers and data-storage equipment

Industrial control systems and automation devices

Consumer electronics and smart home products

Automotive electronic modules and dashboard units

Communication devices, routers, network boards

Testing instruments and measurement equipment

Custom wire harness assemblies and PCB assemblies

Precautions

Ensure proper alignment with the mating IDC ribbon cable before applying pressure.

Avoid excessive bending of the pins during assembly to maintain signal integrity.

Recommended to follow PCB layout dimensions from the technical drawing for optimal soldering.

Use in dry environments or ensure proper enclosure protection if moisture exposure is expected.

For high-current or high-frequency applications, confirm compatibility with system requirements.
