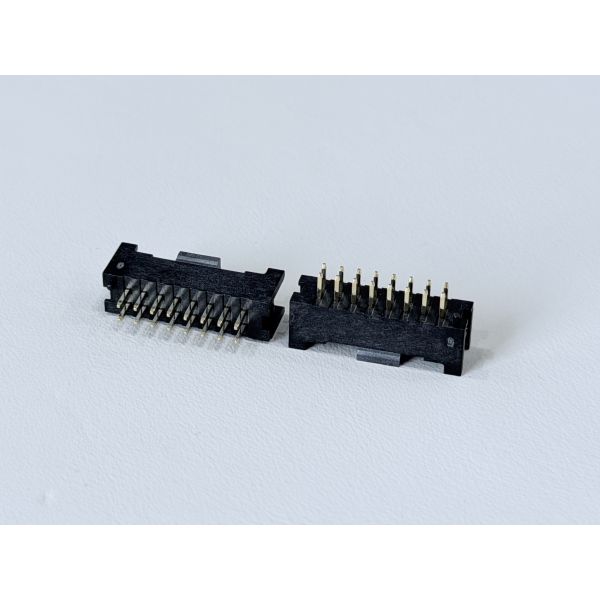

This 2×8 Pin Header Connector with a 2.00mm pitch is designed for reliable PCB-to-PCB and wire-to-board electronic signal transmission. The connector features a vertical through-hole structure with a positioning post, ensuring precise alignment during PCB assembly. Each terminal is made from high-strength copper alloy H65, while the housing uses PA9T/LCP UL94-V0 flame-retardant material, providing excellent thermal stability and mechanical durability.
The terminals are plated with a minimum 30u” nickel base and gold/tin G/F finish, offering improved corrosion resistance and long-term conductivity. With a rated current of 1.5A per pin, initial contact resistance ≤10mΩ, and insulation resistance ≥1000MΩ, the connector ensures stable electrical performance even under demanding environments.
This pin header is ideal for applications requiring compact structure, strong retention, and consistent signal integrity, and supports use in custom wiring, PCB modules, industrial systems, servers, automotive electronics, and power-signal transmission.
| Product Type | Pin Header Connector |
| Configuration | 2×8 Pins, Dual-Row |
| Pitch | 2.00 mm |
| Mounting Style | Vertical PCB Through-Hole |
| Post Design | With Positioning Post (with stand-off column) |
| Tail Length | 3.0 mm (rear tail) |
| Rated Current | 1.5A per pin (Max.) |
| Plating | Ni 30u” Min, Gold/Tin G/F, Salt-spray 24H |
| Insulation Material | PA9T / LCP Black UL94-V0 |
| Terminal Material | Copper Alloy H65 |
| Operating Temperature | –25°C to +85°C |
| Contact Resistance | Initial ≤10mΩ; After environment ≤20mΩ |
| Insulation Resistance | ≥1000MΩ |
| Withstanding Voltage | 800V AC/minute |
| Environmental | ROHS 2.0 / HF |
| Application Type | PCB Wire-to-Board Electronic Signal Transmission |
