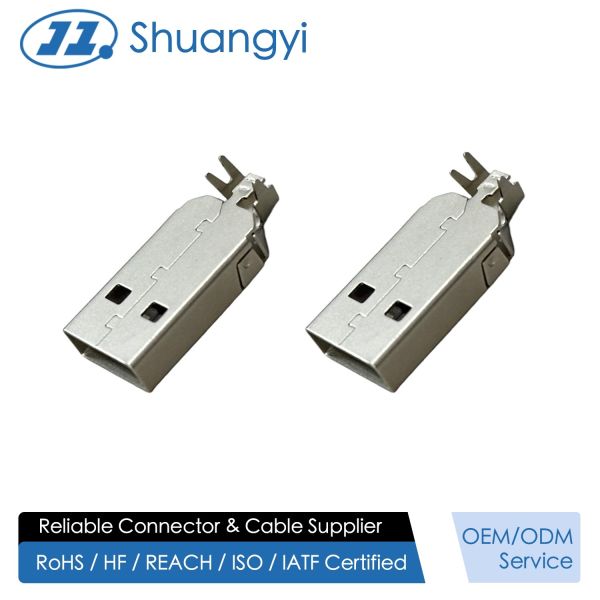

USB 2.0 AM Integrated Metal Shell Connector | Electrical Signal Transmission Wire Connector | Customization for Power & PCB Applications

Name: USB 20 AM Integrated Metal Shell Connector Electrical Signal Transmission Wire Connector Customization for Power amp PCB Applications
Brand: ShuangYi
Price: 0.03 USD

Cheap USB 2.0 AM Integrated Metal Shell Connector | Electrical Signal Transmission Wire Connector | Customization for Power & PCB Applications for sale

Brand Name : ShuangYi

Model Number : SHU-04M-021-N3H-SD

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.03-0.05 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Structure : Two-piece outer shell, laser-marked

Material : SPCC steel, fine-grain matte finish

Plating : Copper ≥150u", Nickel ≥150u"

Surface Treatment : Smooth, no scratches, dents, or deformation

Orientation : 180-degree straight type

Application Category : Power cable, charging cable, data transmission cable

Compliance : RoHS 2.0 + HF

Withstand Voltage : AC 500V/min

Contact Now

Product Description

This USB 2.0 AM integrated metal shell connector is engineered for stable electrical and signal transmission in consumer electronics, industrial devices, and automotive modules. The one-piece SPCC housing enhances structural strength, while the nickel-plated finish ensures corrosion resistance and reliable grounding performance. Manufactured with strict dimensional control and burr-free edges, the connector provides high durability for frequent plugging cycles. Laser marking, customized shell codes, and tailored cable assembly options are available to meet diverse application requirements.

USB 2.0 AM Integrated Metal Shell Connector | Electrical Signal Transmission Wire Connector | Customization for Power & PCB Applications

Product Type	USB 2.0 AM Integrated Metal Shell Connector
Structure	One-piece stamped metal housing
Material	SPCC steel, nickel plated
Plating Thickness	Ni ≥150 μ" (full shell plating)
Dimension Length	24.7 mm (critical controlled dimension)
Surface Requirement	No scratches, dents, burrs ≤0.05 mm
Salt Spray Test	≥48 hours, no rust/oxidation
Laser Marking	Supported, laser-before-plating process
Compliance	RoHS / REACH
Application Type	Wire-to-device / PCB interface
Custom Options	Cable OD, pin layout, plating, marking

Applications

Power and data transmission for consumer electronics

PCB interface for industrial controllers and automation devices

Automotive infotainment and diagnostic equipment

Servers, storage systems, and communication modules

Custom wire harness assemblies requiring robust male USB connectors

Precautions

Confirm shell dimensions and plating thickness meet design requirements before assembly

Avoid excessive pulling force on the cable during installation

Keep the connector dry and dust-free to maintain contact performance

Ensure compatibility of cable OD and strain-relief structure for customized assemblies

Follow recommended soldering and processing guidelines to prevent deformation of the metal shell

USB 2.0 AM Integrated Metal Shell Connector | Electrical Signal Transmission Wire Connector | Customization for Power & PCB Applications

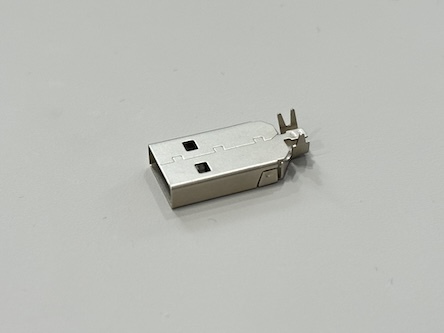

USB 2.0 AM Integrated Metal Shell Connector | Electrical Signal Transmission Wire Connector | Customization for Power & PCB Applications Images
