Product Description

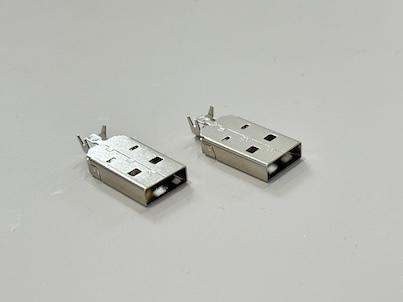

This USB 2.0 AM dual-piece connector features a precision-stamped brass shell (C2680) with a bright nickel plating of 80u" minimum, ensuring excellent corrosion resistance and long-term durability. It supports stable electrical signal transmission and is widely used in power supply cables, electronic devices, industrial equipment, and automotive interfaces. The connector is engineered with strict dimensional control, smooth surface finish, and enhanced mechanical strength, making it suitable for high-reliability assemblies and customized cable production.
| Product Type | USB 2.0 AM Dual-Piece Connector |
| Structure | 2-piece stamped brass shell |
| Material | Brass (C2680) |
| Plating | Nickel ≥ 80u" (bright finish) |
| Length | 24.7 mm |
| Outer Diameter | Ø4.50 mm (reference) |
| Pin Count | Standard USB Type-A male interface |
| Surface Quality | No scratches, dents, or burrs ≤ 0.02 mm |
| Salt Spray Test | ≥ 48 hours |
| Tolerance | ±0.10 / ±0.20 (per drawing zones) |
| Compliance | RoHS, REACH |
| Application Type | Wire-to-PCB, power transmission, electronic equipment |
Applications
Power supply cables and USB charging assemblies
PCB-mounted electronic devices
Automotive diagnostic equipment and in-vehicle electronics
Consumer electronics, home appliances, smart devices
Industrial controllers, servers, and data-transmission modules
Precautions
Ensure the connector length and shell dimensions match your cable and tooling requirements.
Avoid excessive mechanical impact during termination to maintain plating integrity.
Store in a dry environment to prevent moisture corrosion or oxidation.
Follow correct soldering and assembly guidelines to ensure stable electrical performance.
Verify compatibility with USB 2.0 standard during product design.
|
|
