Product Description
This USB 2.0 AM two-piece zinc-carved connector shell is designed for reliable wire-to-cable assembly and high-strength mechanical protection. Made from durable stainless steel or zinc alloy with ≥30u’’ nickel plating, the housing offers excellent corrosion resistance and stability during repeated insertions. The 24.7 mm compact form factor fits standard USB 2.0 cable assemblies and supports power transmission, data communication, electronic terminals, and customized harness manufacturing. The enhanced zinc-engraved structure ensures tight fit, precise cable retention, and improved durability in consumer electronics, automotive electronics, industrial controls, and computer peripheral applications.
| Product Type | USB 2.0 AM 2-Piece Metal Shell |
| Structure | Two-piece zinc-carved housing |
| Length | 24.7 mm |
| Material | Stainless steel / zinc alloy housing |
| Plating | Full-nickel plating ≥ 30u'' |
| Cable Compatibility | Suitable for USB 2.0 cable assembly |
| Shell Thickness | 0.35 mm (typical) |
| Salt Spray Test | ≥ 48 hours |
| Application Type | Wire-to-Cable Connector / Terminal Shell |
| Environment Compliance | RoHS / REACH compliant |
| Assembly Style | Crimping / soldering compatible |
Applications
USB cable manufacturing and custom harness assembly
Consumer electronics such as chargers, adapters, and hubs
Automotive data/power wiring systems
Industrial controllers and machine interfaces
Computer peripherals and communication devices
Precautions
Ensure the cable OD and conductor size match the shell structure for proper crimping.
Avoid excessive force during assembly to prevent deformation of the metal housing.
Keep the connector dry and free from conductive debris before use.
Follow standard USB 2.0 assembly guidelines for best electrical performance.
Store in a clean, dry environment to maintain plating quality.
|
|

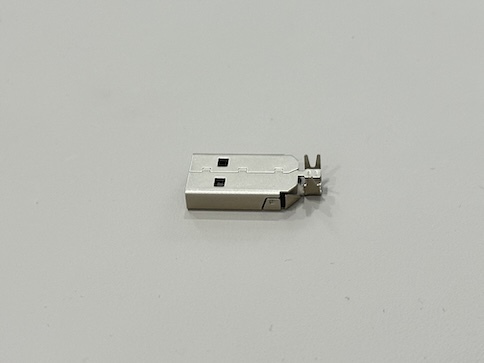

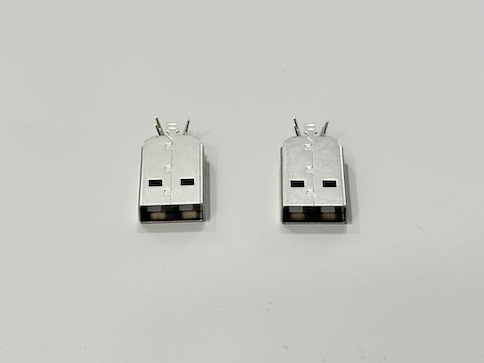

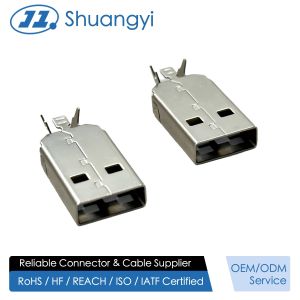

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission Images
|
