USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u", Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications

Name: USB 20 AM SolderType Connector Black GoldPlated 5uquot Wire Cable Electrical Signal Male Connector for PCB Automotive Server amp Power Applications
Brand: ShuangYi
Price: 0.03 USD

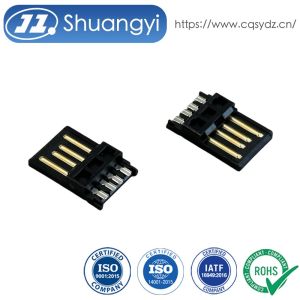

Cheap USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u", Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications for sale

Brand Name : ShuangYi

Model Number : USB-04M-A11S1A3-000H

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.03-0.05 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Structure : One-Piece Shell + Solder Cup Terminals

Housing Material : PBT G/F, V0 Black

Contact Plating : 30 µ″ Gold on contact area

Terminal Base Material : Brass C2680-H

Solder/Crimp Area Plating : Bright Tin ≥ 80 µ″

Insulation Resistance : ≥1000 MΩ @ 500V DC

Rated Current : 3A max (all pins), 250V AC

Withstand Voltage : 500V AC / 1 minute

Environmental Compliance : RoHS/REACH compliant

Application Type : Wire-soldering type (custom length & gauge available)

Contact Now

Product Description

This USB 2.0 AM solder-type connector is designed for high-performance cable manufacturing and stable electrical transmission. The contact area features 5u" hard gold plating to ensure low resistance, strong corrosion resistance, and long-term durability. The housing is made of high-temperature, flame-retardant PBT for enhanced mechanical strength and reliability. With excellent conductivity, stable mating performance, and robust construction, this connector is ideal for high-frequency soldering and professional cable assembly lines.

USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u", Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications

Product Type	USB 2.0 AM Integrated Connector (Wire Solder Type)
Structure	One-Piece Shell + Solder Cup Terminals
Contact Plating	30 µ″ Gold on contact area
Terminal Base Material	Brass C2680-H
Terminal Nickel Plating	≥ 50 µ″
Solder/Crimp Area Plating	Bright Tin ≥ 80 µ″
Shell Material	SPCC, Thickness 0.30 mm
Shell Plating	Nickel ≥ 80 µ″
Housing Material	PBT G/F, V0 Black
Rated Current	3A max (all pins), 250V AC
Contact Resistance	≤ 30 mΩ
Insulation Resistance	≥ 1000 MΩ @ 500V DC
Withstand Voltage	500V AC / 1 minute
Mating Force	≤ 35 N
Unmating Force	≥ 10 N
Durability	1500 cycles
Applicable Cable	Wire-soldering type (custom length & gauge available)
Environmental	RoHS/REACH compliant

Applications

Data transmission cables for computers, printers, and consumer electronics

Automotive diagnostic devices and charging interfaces

Industrial control systems and instrumentation

Server and storage equipment

Power supply cables and USB extension assemblies

Customized wire harnesses requiring stable signal and power delivery

Precautions

Avoid excessive soldering heat to prevent deformation of the insulation material

Ensure proper strain relief during cable assembly for long-term reliability

Keep the contact surfaces clean to maintain optimal conductivity

Confirm wire gauge compatibility before installation

Not recommended for environments with prolonged exposure to moisture without additional sealing

USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u", Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications

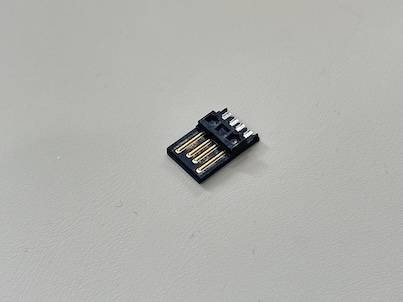

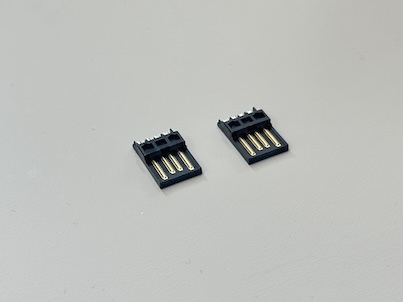

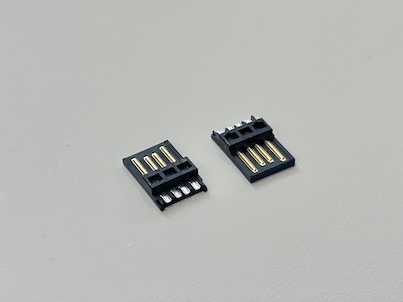

USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u", Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications Images
